Car Scissor Lift
Home > Products > Car Lift > Car Scissor Lift

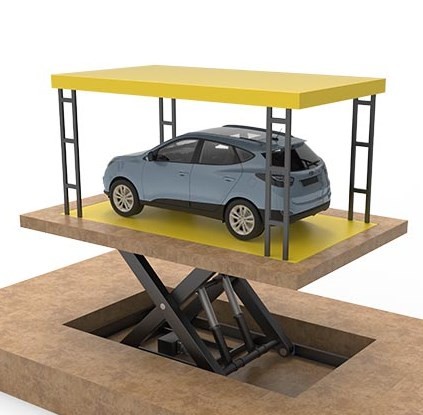

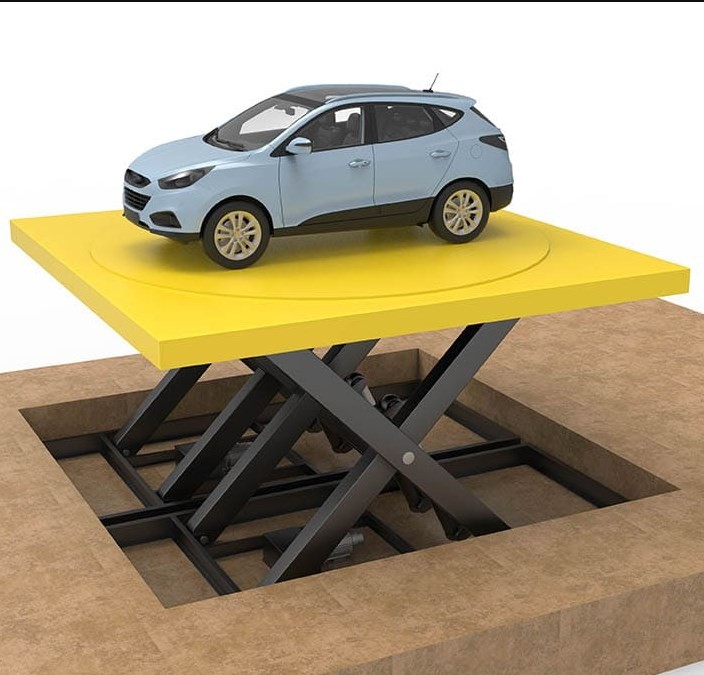

Car scissor lift

1: High-strength manganese steel scissor lift structure is stable, with large bearing capacity, stable lifting, easy installation and maintenance.

2: The cylinder adopts imported high quality seals NOK Japan

3: Multi-point control for each working level of convenient operation: control electric appliance, travel switch, intermediate relay adopt Delixi, People, Siemens or Schneider (optional imported equipment)

4: Lifting platform operation warning light or warning bell (optional)

5: Emergency manual valve: When the power supply fails, the platform can be lowered to the nearest floor position.

6: Overflow valve: Anti-overload setting prevents system pressure from being too high during upward movement.

7: Pipe explosion-proof valve: When the hydraulic system pipeline rupture platform stalls down, it can automatically cut off the oil circuit to stop falling.


Car scissor lift

1: High-strength manganese steel scissor lift structure is stable, with large bearing capacity, stable lifting, easy installation and maintenance.

2: The cylinder adopts imported high quality seals NOK Japan

3: Multi-point control for each working level of convenient operation: control electric appliance, travel switch, intermediate relay adopt Delixi, People, Siemens or Schneider (optional imported equipment)

4: Lifting platform operation warning light or warning bell (optional)

5: Emergency manual valve: When the power supply fails, the platform can be lowered to the nearest floor position.

6: Overflow valve: Anti-overload setting prevents system pressure from being too high during upward movement.

7: Pipe explosion-proof valve: When the hydraulic system pipeline rupture platform stalls down, it can automatically cut off the oil circuit to stop falling.


  • Description


C-KHS  Series
UseCar lift, car transport between different floors
AppearanceCan be customized according to customer needs
Platform Size(L*W)10m²-100m²
Lifting Height0-20m
Loading Capacity0-100t
Lifting Speed4-8m/min
Entry And Exit Mmethod0°     180°
Control MethodAutomatic/Jog Control
Installation MethodInstall in the foundation pit
Power Supply220V / 380V
External Control DeviceThe external call box placed on the wall near the upper and lower stopping floors of the equipment

Custom Design



Advantages

Ultra high security

WEMET multiple safety protection facilities: overload safety protection, pressure loss safety protection, safety interlock, equipment abnormality detection, emergency descent system and so on. To provide you with the most powerful security.

Multi-point control, precise leveling

The platform control panel is set at each work level. The lifting platform automatically and accurately stops when it reaches the target floor.

WEMET high-end hydraulic system

WEMET hydraulic lifting system adopts fully enclosed imported hydraulic station, high sealing precision grinding cylinder and high pressure double-layer oil pipe. Powerful and low failure rate, giving you a high-end product experience.

High-strength scissor structure

The WEMET scissor structure uses high-strength alloy steel. High strength, heavy load, no deformation. After WEMET’s 15,000 full load tests, it is still solid and new, safe and stable.
