Product parameters
| Model | GTJZ12 |
| Max.working height | 14m |
| Drive Speed elevated | 0.8km/h |
| Drive speed lowered | 3.5kw/h |
| Number of workers | 2 |
| Machine weight | 2900kg |
| Platform size(length * width) | 2.25m * 1.13 m |
| Platform extension size | 900 mm |
| Load Capacity | 320kg |
| Load capacity of extended platform | 110kg |
| Min. ground clearance(stowed) | 100 mm |
| lifting motor | 24 V / 4.5 KW |
| Machine running speed(stowed) | 3 KM / h |
| Rising/descending speed | 35 / 30 sec |
| Batteries | 4 * 6V / 230 AH |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Max. working slope | 1.5°/ 3 ° |
| Hydraulic Oil Tank | 20L |

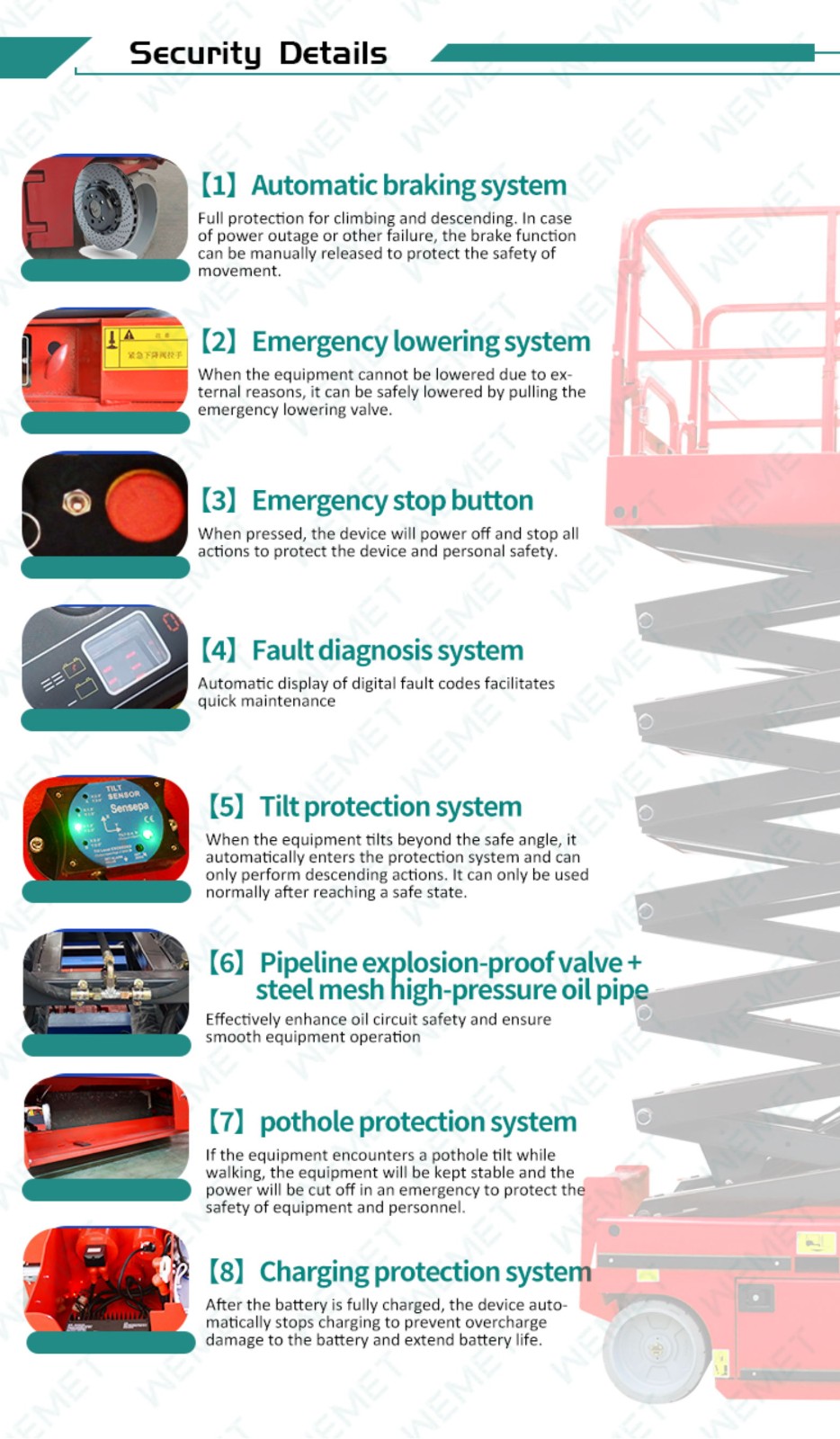

Standard Equipment
● Electrophoretic Paint-coated
● Fold-Down Guard Rails
● Slide-Out Battery Trays
● Scissor Maintenance Prop
● Lanyard Attach Points
● Fork Lift Pockets
● Battery Condition Indicator
● Dual LED Flashing Beacons
● 20 Amp Automatic Charger
● Proportional control
● 35 in. (90 cm) Roll-Out Deck Extension
● Movable, Removable Platform Control Box
● Descent, Tilt and Motion Alarm
● Mechanized Pothole Protection
● Automatic brake system
● Emergency descent system
● Emergency stop button
● Tubing explosion-proof system
● Intelligent Fault Diagnosis System
● Fault diagnosis system
● Tilt protection system
● Manual Brake Release
● Buzzer
● Horn
● Standard forklift slot
● Charging protection system
● 4*2FWD
● Hourmeter
