Scissors Lift
Home > Products > Aerial Work Platform > Scissors Lift

GTJZ08

Maximum working height: 10m

Safe working load: 450kg

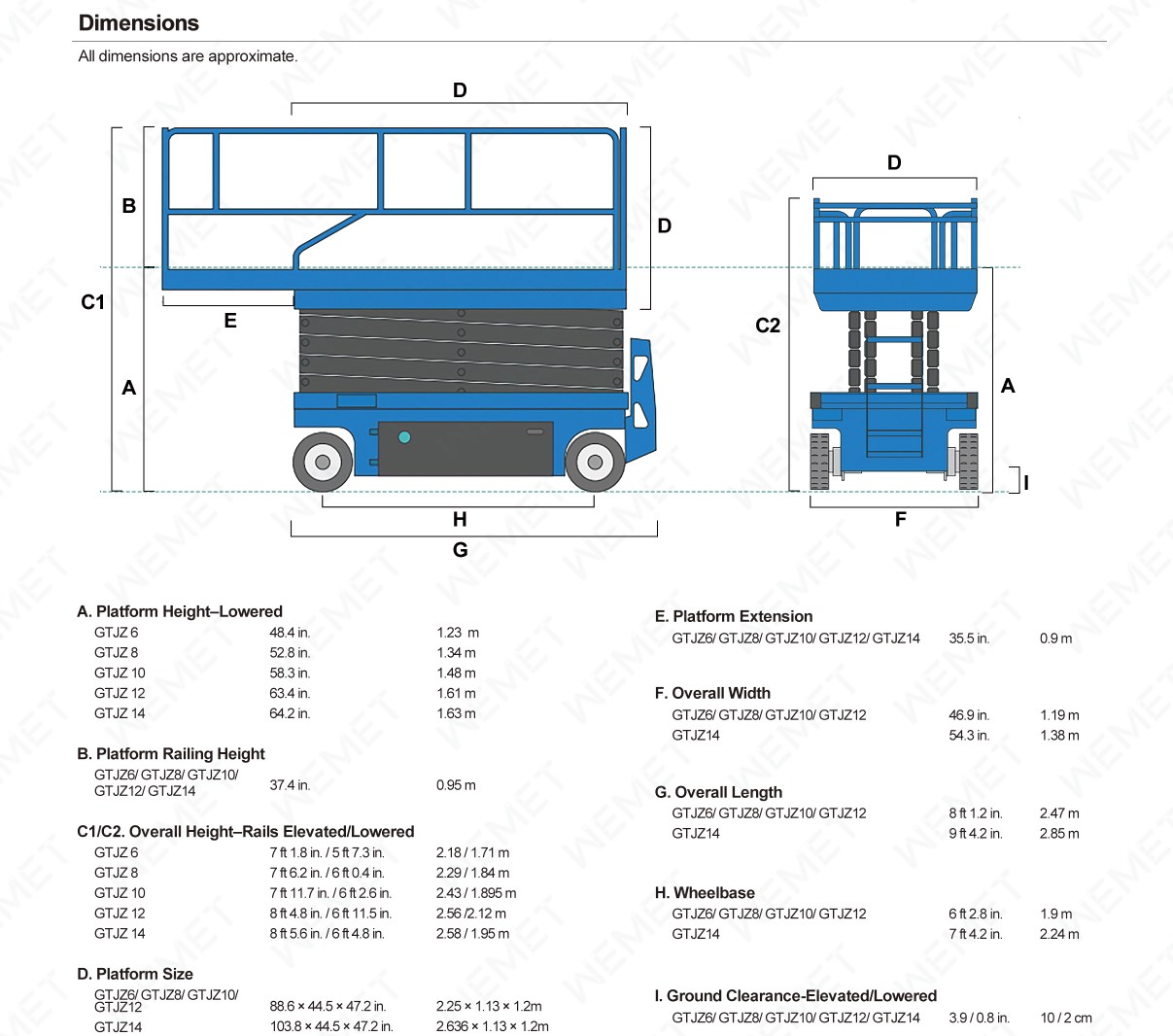

Overall Length*Width: 2.47*1.19m

Weight: 2208kg


GTJZ08

Maximum working height: 10m

Safe working load: 450kg

Overall Length*Width: 2.47*1.19m

Weight: 2208kg


  • Description
  • Parameters

Products highlights

1、strong support of good quality, no deformation



2、Easy to maintain solid rubber tyre, durable



3、 guardrail high strength guardrail, safer operation



4、The emergency descent system fails to operate. This device ensures that the operator can reach the ground safely



5、The front urning radius is smaller, operating in a narrow space

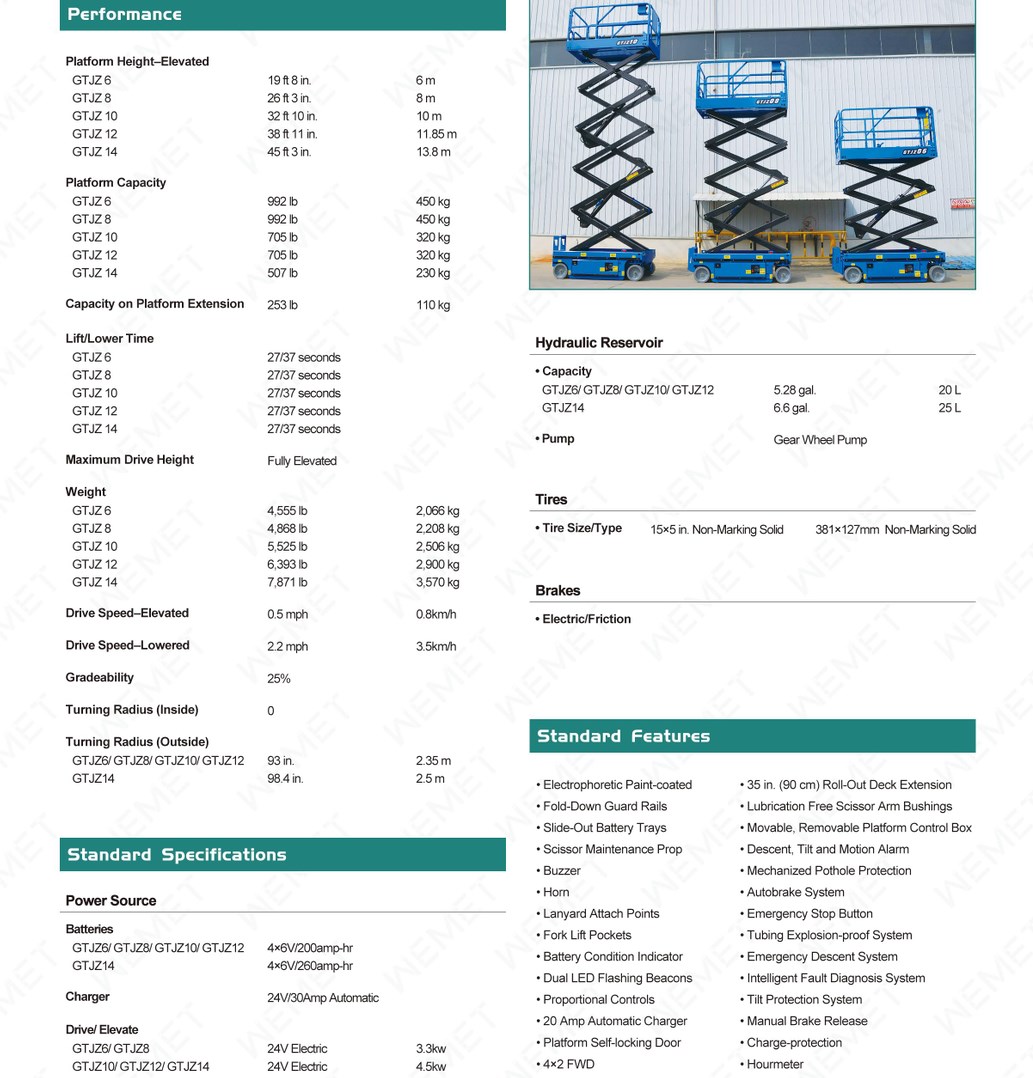

Products Parameter

BrandGTJZ08
Max.working height10 m
Drive Speed elevated0.8km/h
Drive speed lowered3.5kw/h
Number of workers   2
Machine Weight2208kg
Platform size(length * width)2.25m*1.13 m
Platform extension size900 mm
Load Capacity450kg
Load capacity of extended platform110kg

Min. ground clearance(

stowed)

150 mm
lifting motor24 V / 3.3KW
Machine running speed(stowed)2 KM / h
Rising/descending speed38 / 30 sec
Batteries4 * 6V/ 200 AH
Charger48 V/25 A
Gradeability25%
Max. working slope1.5°/ 3 °
Hydraulic Oil Tank20 L


Standard Equipment

  Electrophoretic Paint-coated

  Fold-Down Guard Rails

  Slide-Out Battery Trays

  Scissor Maintenance Prop

  Lanyard Attach Points

  Fork Lift Pockets

  Battery Condition Indicator

  Dual LED Flashing Beacons

  20 Amp Automatic Charger

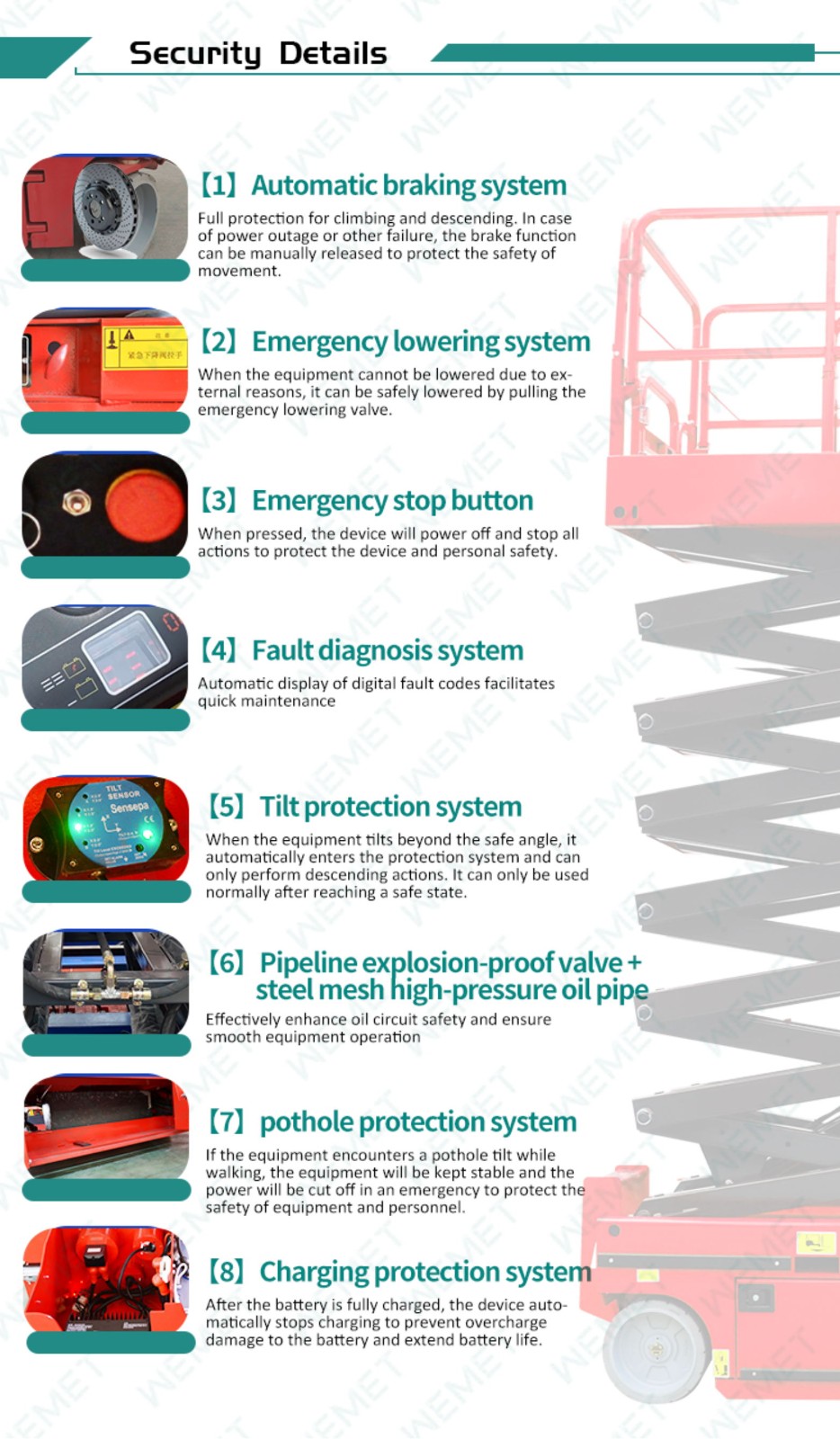

●  Proportional control

●  35 in. (90 cm) Roll-Out Deck Extension

●  Movable, Removable Platform Control Box

●  Descent, Tilt and Motion Alarm

●  Mechanized Pothole Protection

●  Automatic brake system
●  Emergency descent system

●  Emergency stop button

●  Tubing explosion-proof system

  Intelligent Fault Diagnosis System

●  Fault diagnosis system
●  Tilt protection system

  Manual Brake Release

●  Buzzer
●  Horn
●  Standard forklift slot
●  Charging protection system

●  4*2FWD

●  Hourmeter

GTJZ08

GTJZ08

GTJZ08
